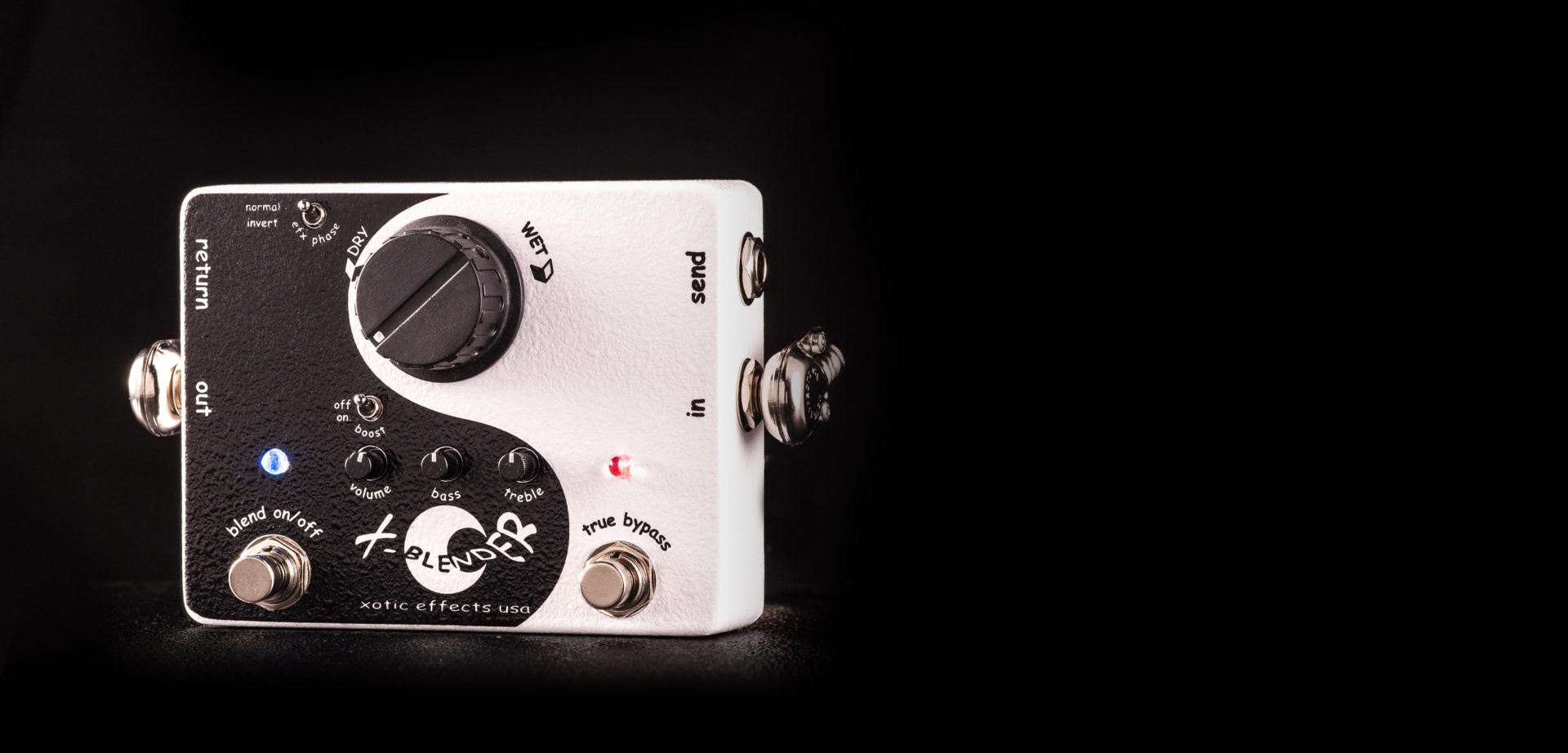

what is the X-Blender?a pedalboard must have

Dial just the right amount of effects into your live and studio mixes with the turn of a knob!
Features volume bass and treble knobs and a boost switch for +6dB boost.

The X-Blender uses an "AUX send/return" functionEliminating signall loss

Preserving the integrity of your guitars signal and overall tone.

Designed to be completely transparent.


keep your signal intactby blending your fx chain.

The X-Blender incorporates pro-audio engineering technology to solve the sonic imperfection some effects produce and was designed to be completely transparent. You'll be amazed by the clarity of the sound.

True bypass for eliminating any signal interference when switched off. Can be used with AC adaptor (optional) or 9V Battery.


maximize up your signalwith Xotic All-Brass® Patch Cables

Xotic All-Brass® cables prevent oxidation at the solder points and apply a hermetic air-tight seal for the highest levels of durability. The All-Brass® pancake-style plugs are not made from your standard steel plug, but a nickel-plated brass plug that won't magnetize over time. Unlike super-hard metals such as steel, the brass plugs create less wear and tear on your pedal and slide in with ease.

Xotic All-Brass® patch cables retain the original tone and sustain of your instrument. We use a super low capacitance cable that results in low noise and high tone quality. Cables are hand soldered with rigid stress relief preventing breakdowns on the road and in the studio.

  • Blend your signal like a PRO

    Run the X-Blender in Series Mode or Parallel Mode for variations of wet and dry blends and get the perfect amount of effect signal in your chain.

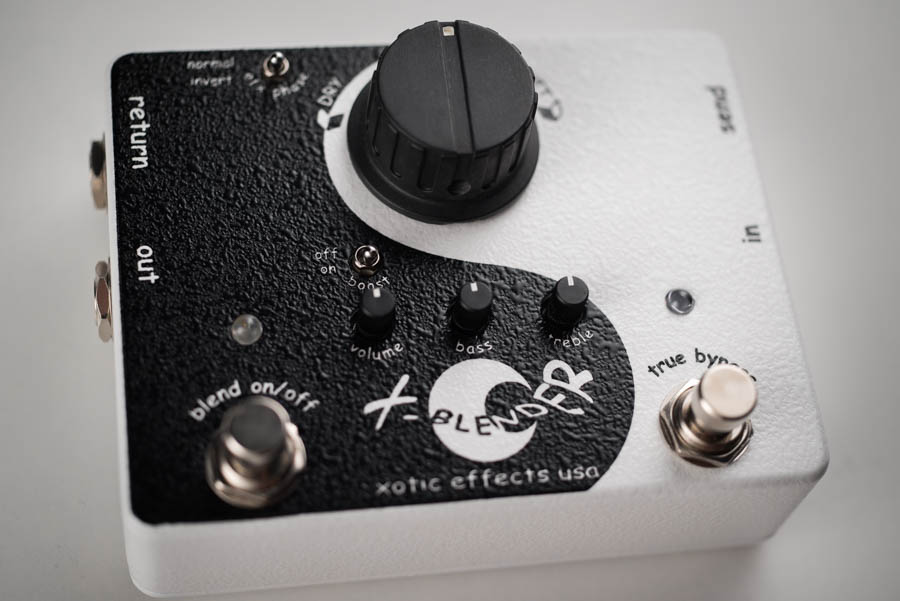

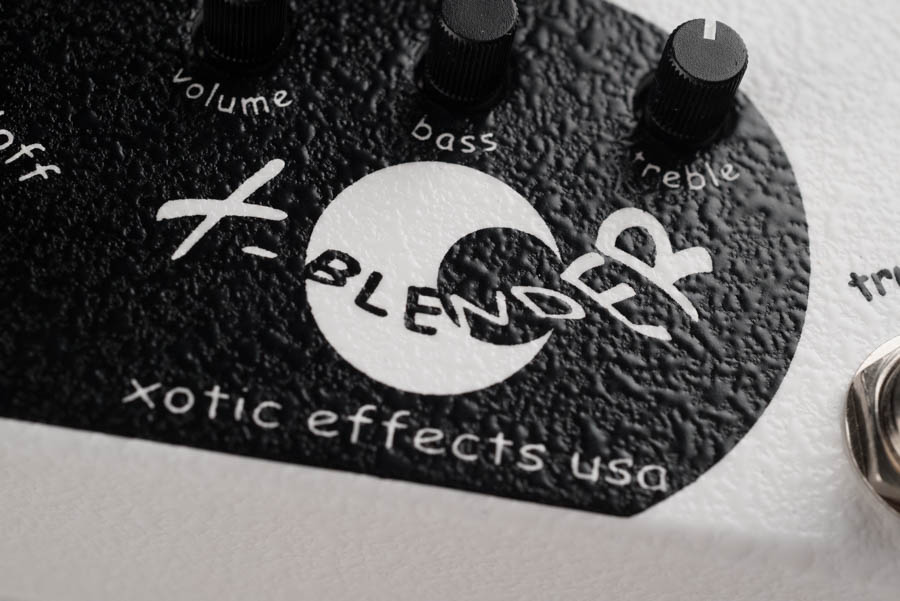

  • Volume and EQ

    The Volume, Treble and Bass Knobs add another level of control to your mix.

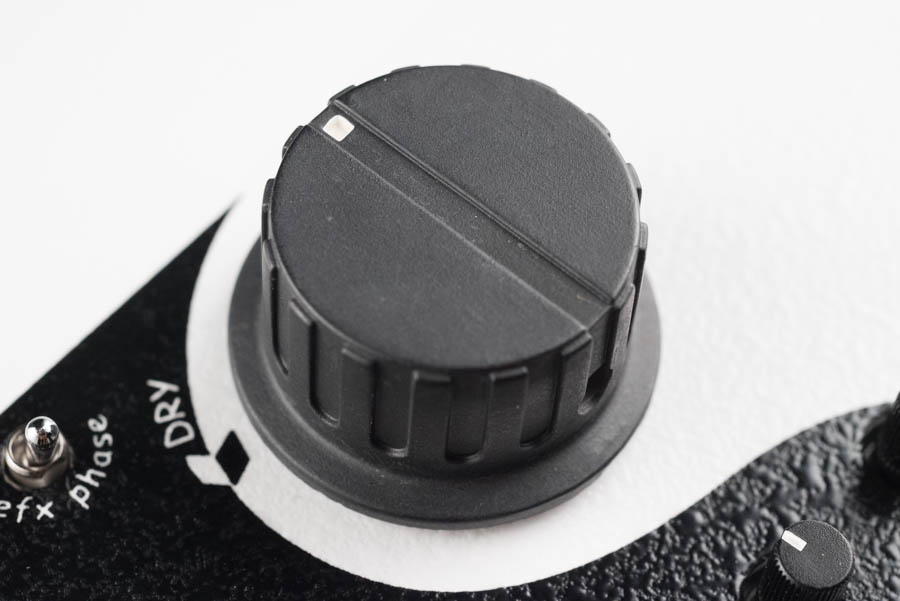

  • Huge Knob!

    The large control pot allows for a wide range of sweeping control over your signal and can be controlled with your foot while mixing on the fly!.

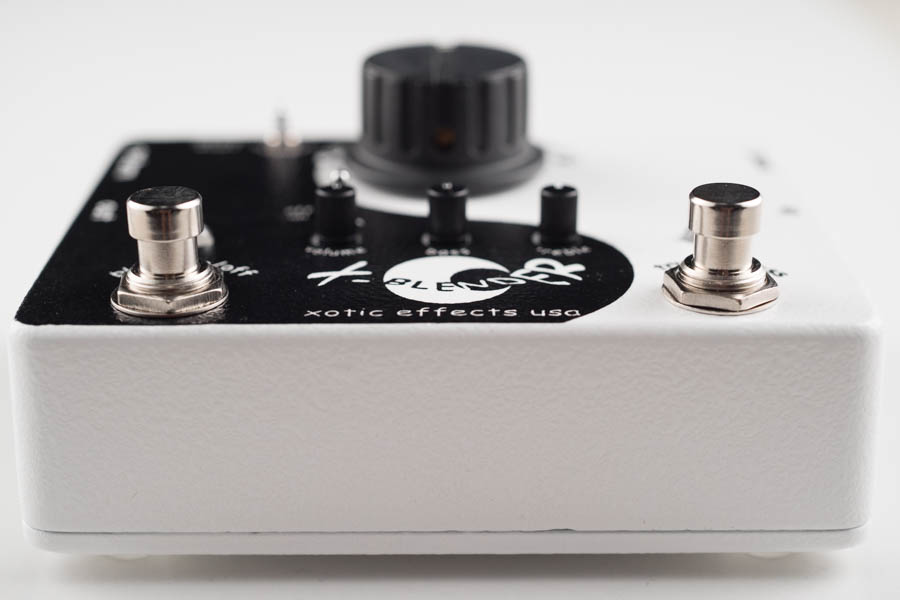

  • True Bypass

    The true bypass switch lets you bypass the pedal without altering your guitar tone.

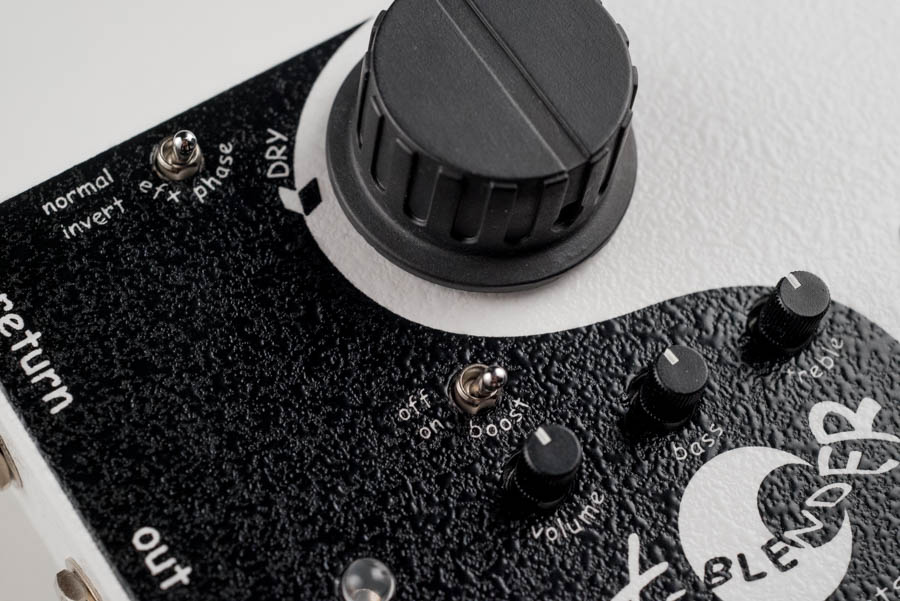

  • Features Phase and Boost Switches

    Phase Inv. SwitchThis function can be used with vintage type wah or vintage type booster effect.These devices have output signal that are normally out of phase, without phase correction the signals could not becombined properly with the direct signal.

    Boost Switch will give +6dB of volume boost. This function will only work when the blend switch is on.

  • Top of the line Parts

    Your tone is important and that's why we use they best parts available and that's why the X-Blender is so transparent

Dimensions (W/D/H): 4.62" x 3.65" x 2" (117mm X 93mm X 50mm)
Weight: 1 lbs. (0.5kg)
Bypass: True Bypass Switching
Power Consumption: 9VDC/5mA
Battery Type: 9VDC (006P) x 1
AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated recommended)
Input Impedance: 1M ohm
Output Impedance: 1k ohm

The X-Blender

A Pedal Board Must Have
