RC Booster v2



we did us…
one better

Production of the RC Booster (Version 1) was discontinued by end of 2017.
We faithfully (promise) re-created the RC Booster, but added a twist!

need a second gain stage?
we’ve got the pedal

The RC Booster V2, inspired by the Scott Henderson RCB-SH model, now comes with an added gain channel for even fatter tones with a super transparent 20dB+ clean boost.

  • Super Transparent 20dB+ Clean Boost
  • Adjustable +-15dB Two Band Active EQ
  • Run it at 18v for even more headroom!

so good, you’ll alwaysleave it on!

Using premium parts, the RC Booster V2 is considered as an "always on pedal" and enhances your guitar's natural harmonics without affecting its tone.


need more headroom?you got it!

The Xotic “Voltage Doubler” is a step-up converter that takes 9 volts DC and boosts it to an output voltage of 15 or 18 VDC (max current draw 80mA).

Why do you need a voltage doubler? Higher voltage levels result in more headroom. When you boost the voltage your find your Xotic pedals will get much more dynamic, more headroom, top end and brightness, less compressed sound.

  • an "Always On Pedal"

    Maximize your tone by leaving the pedal on and boosting the natural harmonics of your guitar.

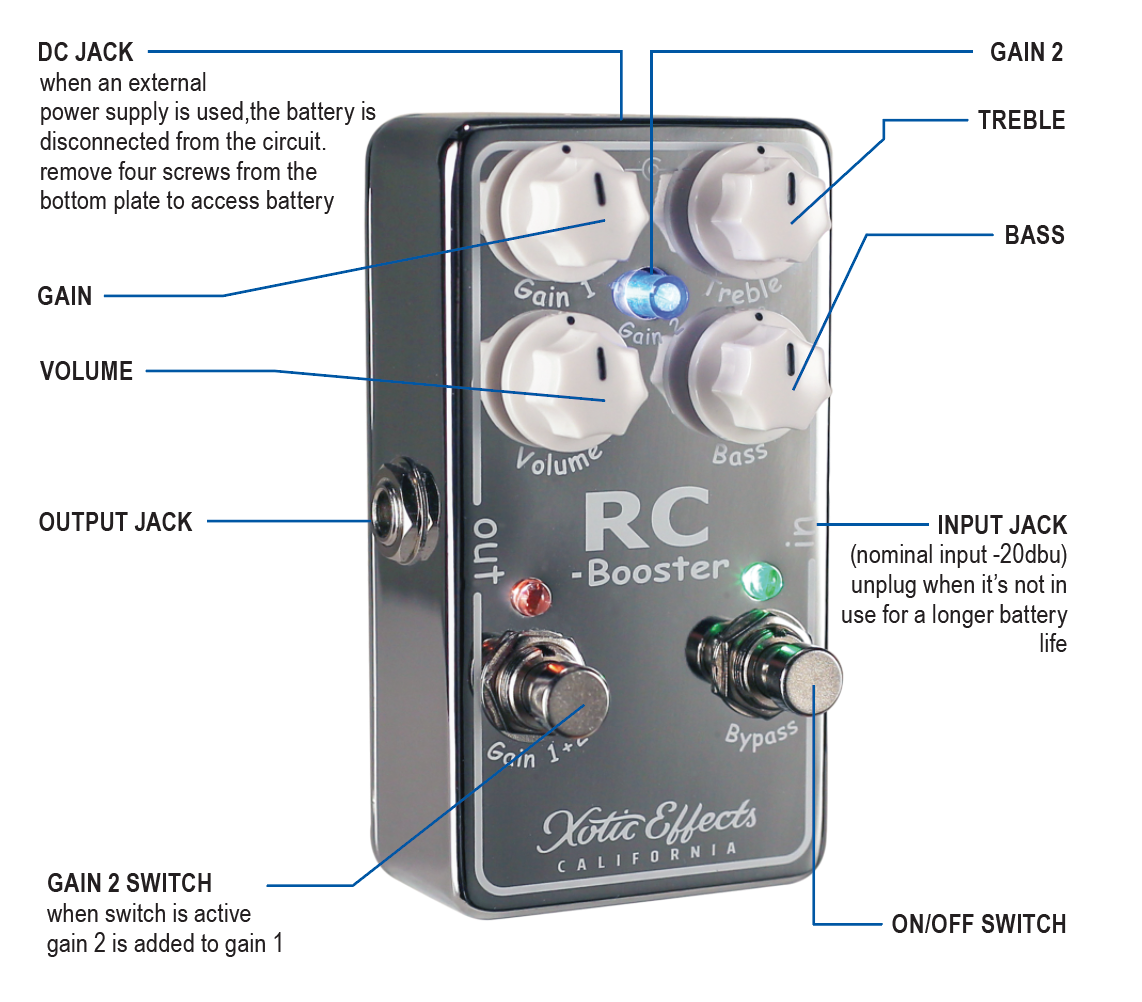

  • Highly Versatile, Yet So Simple

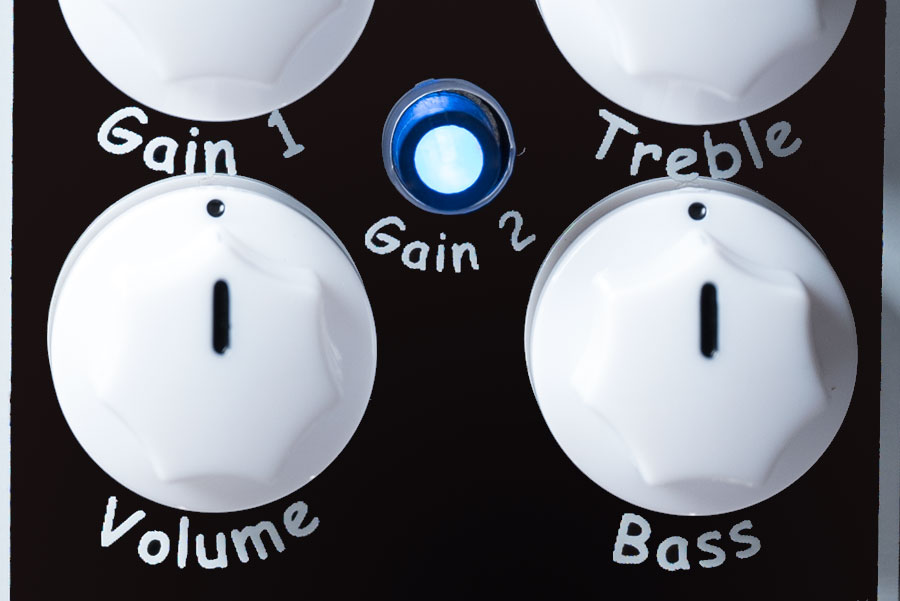

    Treble and bass knobs easily and accurately dial in your ideal tone.

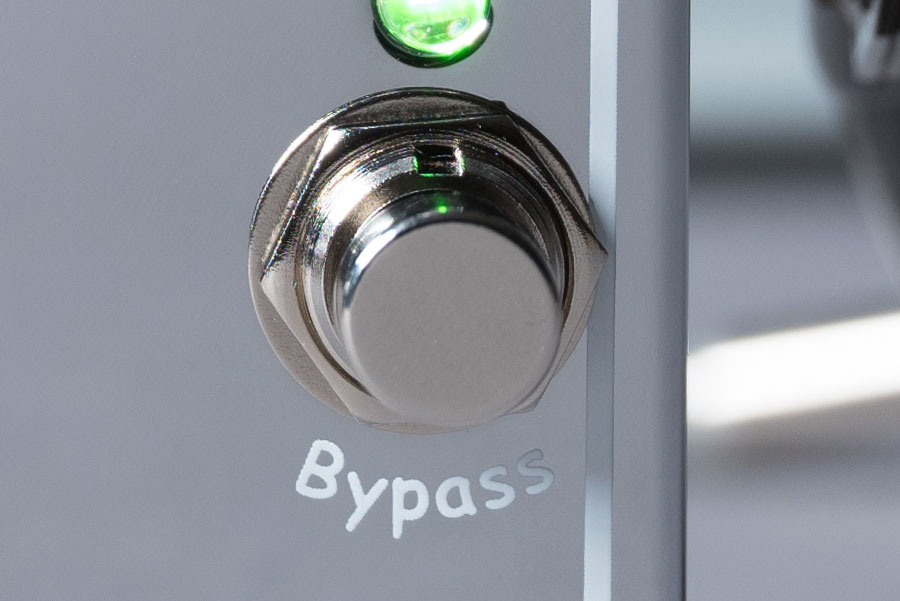

  • True Bypass

    Advanced circuity to keep your pedal signal pure and free of noise.

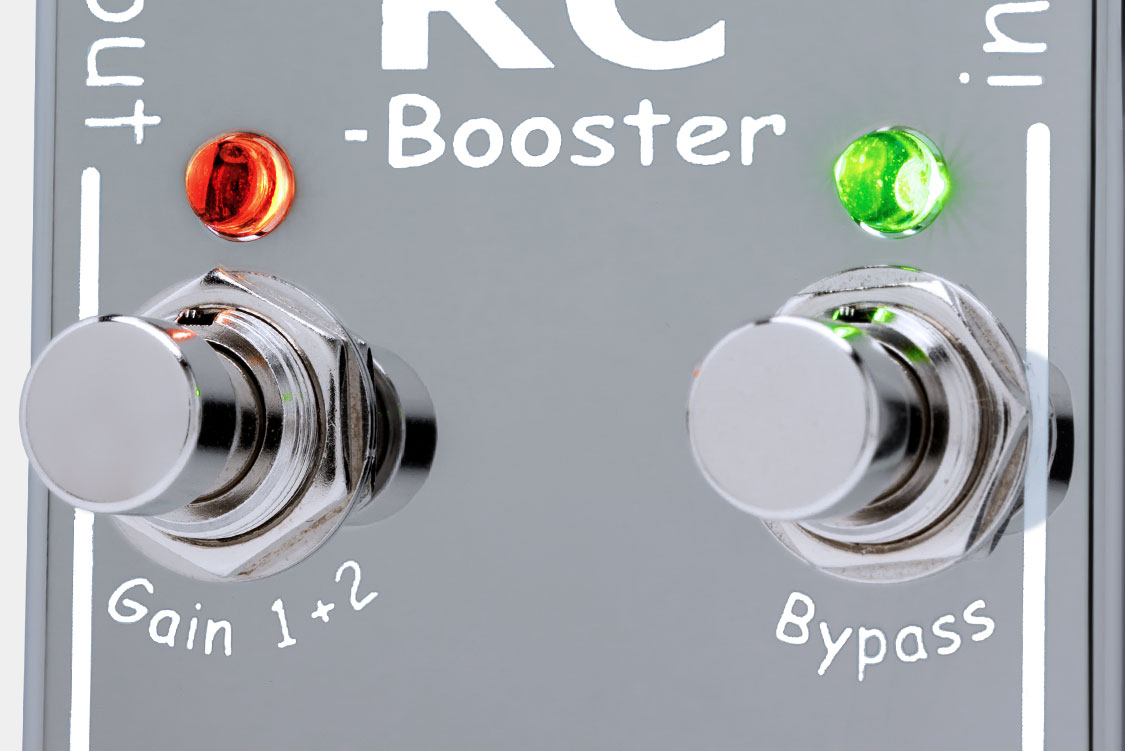

  • Extra Mojo When On!

    Engage the gain 2 switch to push your amp over the edge for even more breakup.

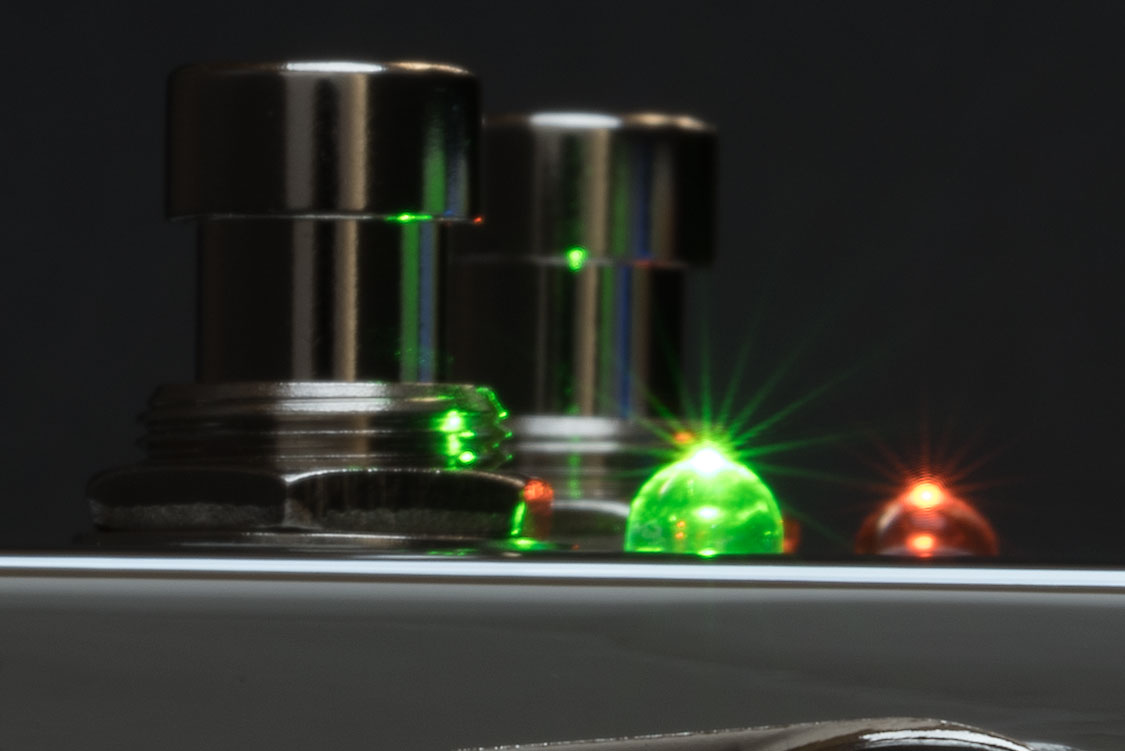

  • Light it up

    Multi color LEDs indicate when switches are engaged - perfect for a dark room.

  • More Power Under the Hood

    We took the legendary RC Booster and added an extra gain stage for even fatter tones.


The RCB-V2 can be powered by 9-voltup to 18-volts for desired headroom

Dimensions (W/D/H): 4.39" x 2.38" x 1.98" (112mm X 60mm X 50mm)
Weight: 0.6 lbs. (280g)
Bypass: True Bypass Switching
Power Consumption: 9VDC/6mA or 18V/6mA
Battery Type: 9VDC (006P) x 1
AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated recommended)
Input Impedance: 500k ohm
Output Impedance: 10k ohm

The RC Booster v2

A Pedal Board Staple
