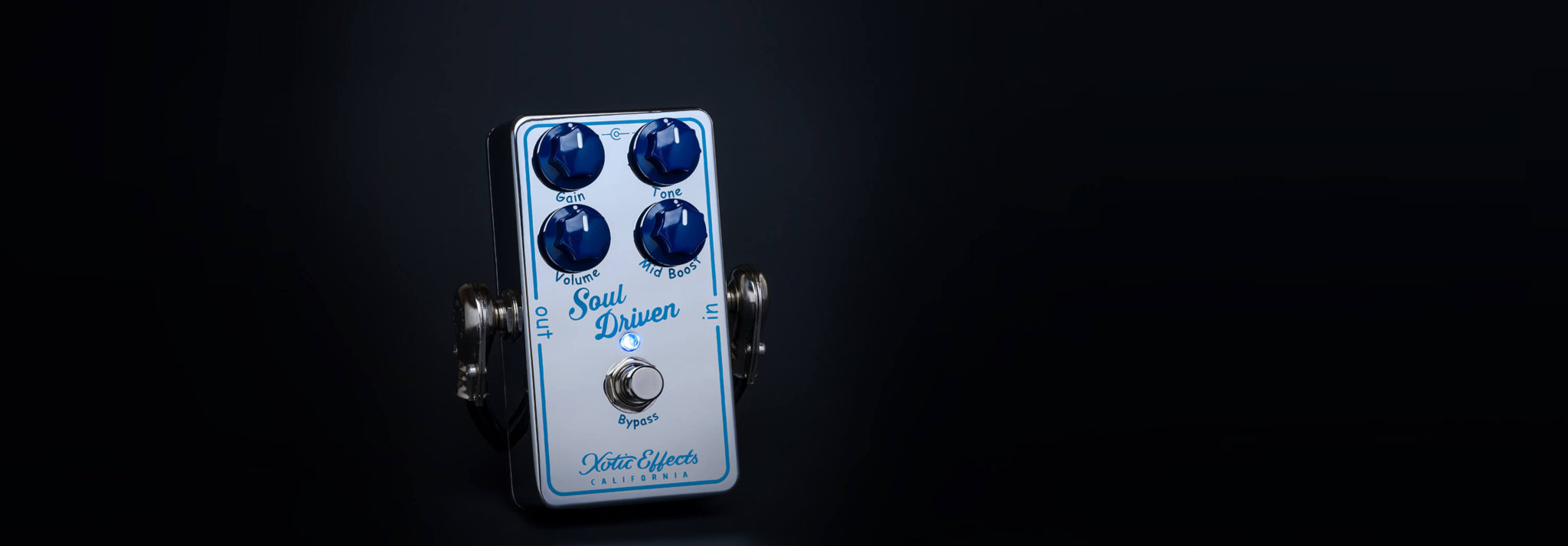

SOUL DRIVEN
PLUG IN TO A

SOUL DRIVEN

CREAMY BOOST
OVERDRIVE

XOTIC’S TONE SHAPING TOOL
SOUL DRIVEN, ENHANCES NATURAL HARMONICS

Add “Soul” to your sound by producing creamy boost and overdriven tones that enhance harmonics while maintaining the transparency of your guitar tone.

The pedal is equipped with incredibly flexible tone shaping options to help customize your sound.

HARMONIC BLISS
ENHANCE THE TONAL SPECTRUM TRANSPARENTLY

The “Mid boost” knob pushes the mid-range frequencies creating rich dynamics and the “Tone” knob (not just your ordinary tonecircuit) can be set from a super tight bottom end to “in your face” highs.

Soul Driven will help you dial in the “sweet spot” every time.

overview

Super Transparent OverdriveRich Dynamic Mid Boost for Creamy Tones

Internal Dipswitch Settings
1 2
Default Settings: Boost Off (Flat) ON ON
Bass Boost: +2.4dB @125Hz ON OFF
Bass Boost: +3.6dB @125Hz OFF ON
Bass Boost: +6dB @125Hz OFF OFF
accessories

need more headroom?you got it!

The Xotic “Voltage Doubler” is a step-up converter that takes 9 volts DC and boosts it to an output voltage of 15 or 18 VDC (max current draw 80mA).

Why do you need a voltage doubler? Higher voltage levels result in more headroom. When you boost the voltage your find your Xotic pedals will get much more dynamic, more headroom, top end and brightness, less compressed sound.

more
  • Small pedal, huge tone

    With it's compact size, the Soul Driven is a perfect fit for any pedalboard. It may be small, but this compressor packs a huge punch when it comes to tone shaping options.

  • Highly Configurable, Yet So Simple

    Open the back cover and you'll find the internal dip switches for even more tone shaping capabilities.

  • True Bypass

    Bypass the pedal with true bypass switching when disengaged.

  • An always on pedal

    Many players find that they will leave the Soul Driven on at all times.

  • Discrete FET Design, Road Worthy Enclosure


  • More Power Under the Hood


specs

The Soul Driven can be set forDriving your Clean Channel or Overdriving your Dirty Channel

Dimensions (W/D/H): 4.39" x 2.38" x 1.98" (110mm X 60mm X 50mm)
Weight: 0.68 lbs. (309g)
Bypass: True Bypass Switching
Power Consumption: 9VDC/4mA or 18VDC/6mA
Battery Type: 9VDC (006P) x 1
AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated recommended)
Input Impedance: 500k ohm (min)
Output Impedance: 10k ohm

The Soul Driven

A Pedal Board Staple
