a transparent boost just for bassFor fatter, punchier bass tones
the perfect remedy
for signal loss and EQ limitations common to vintage basses
Designed to enhance your bass guitar tone without masking it.
- Super Transparent 20dB+ Clean Boost
- Adjustable +-15dB Two Band Active EQ
- Run it at 18v for even more headroom!
With 20+dB clean boost immediately notice the difference
We added a second gain stage to drive your amp harder for fatter organic tones.
need more headroom?you got it!
The Xotic “Voltage Doubler” is a step-up converter that takes 9 volts DC and boosts it to an output voltage of 15 or 18 VDC (max current draw 80mA).
Why do you need a voltage doubler? Higher voltage levels result in more headroom. When you boost the voltage your find your Xotic pedals will get much more dynamic, more headroom, top end and brightness, less compressed sound.
an "Always On Pedal"
Maximize your tone by leaving the pedal on and boosting the natural harmonics of your bass guitar.
Highly Versatile, Yet So Simple

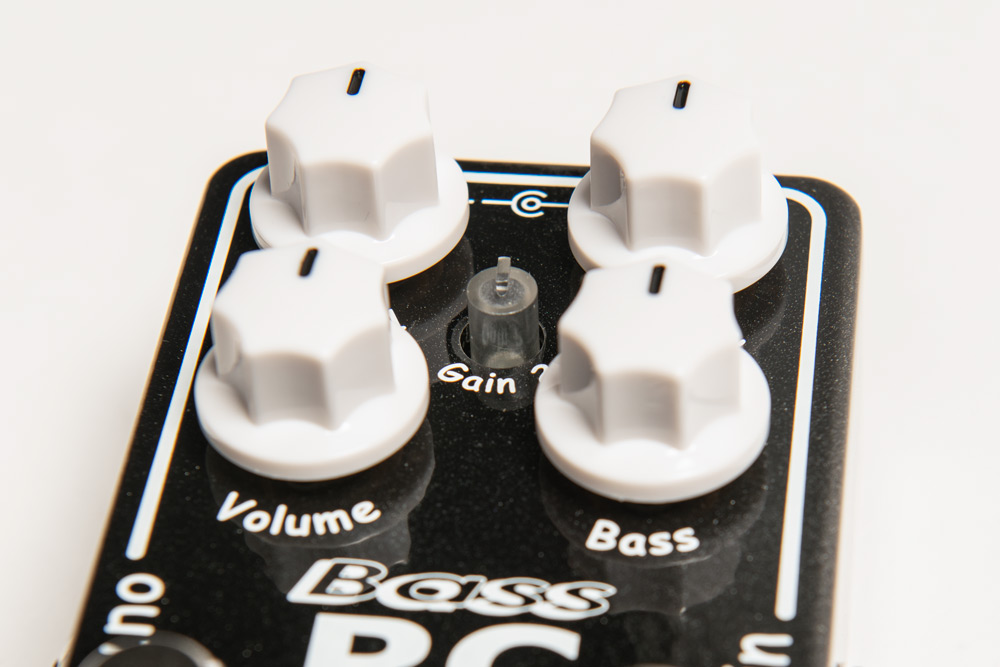

Treble and bass knobs easily and accurately dial in your ideal tone.
Advanced circuity to keep your pedal signal pure and free of noise.
Extra Mojo When On!

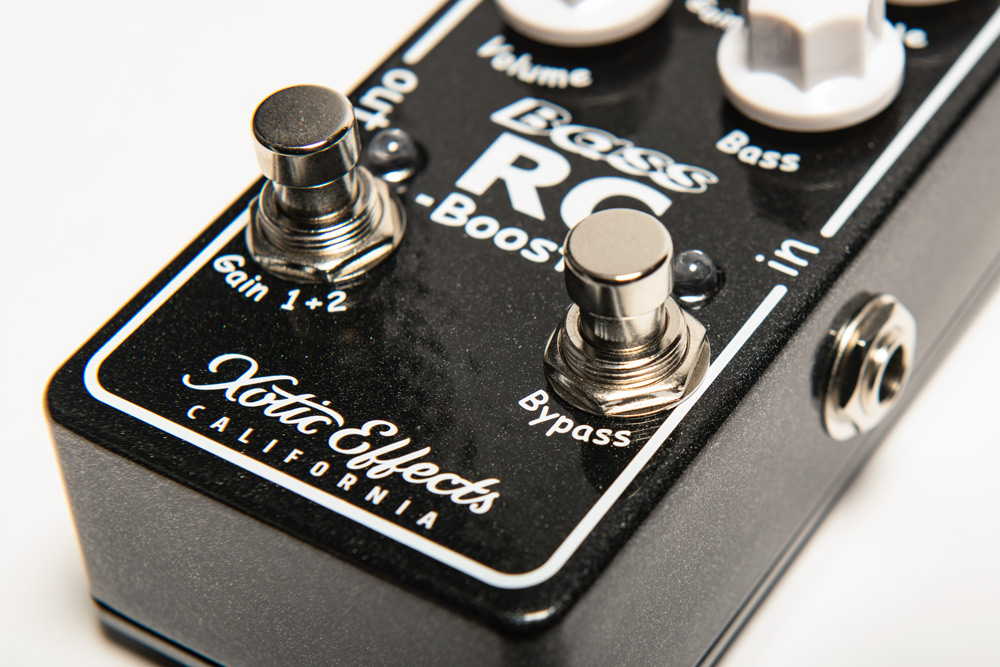

Engage the gain 2 switch to push your amp over the edge for even more breakup.
|Dimensions (W/D/H):||4.39" x 2.38" x 1.98" (112mm X 60mm X 50mm)|
|Weight:||0.6 lbs. (280g)|
|Bypass:||True Bypass Switching|
|Power Consumption:||9VDC/6mA or 18V/6mA|
|Battery Type:||9VDC (006P) x 1|
|AC Adapter (Optional):||9VDC-18VDC, Negative Tips (Regulated only)|
|Input Impedance:||1M ohm|
|Output Impedance:||2k ohm|
