VOLTAGE DOUBLER
PLUG IN TO A

VOLTAGE DOUBLER

ADD MORE HEADROOM
TO YOUR XOTIC EFFECTS PEDALS

HEADROOM HEAVEN
15 OR 18 VOLTS

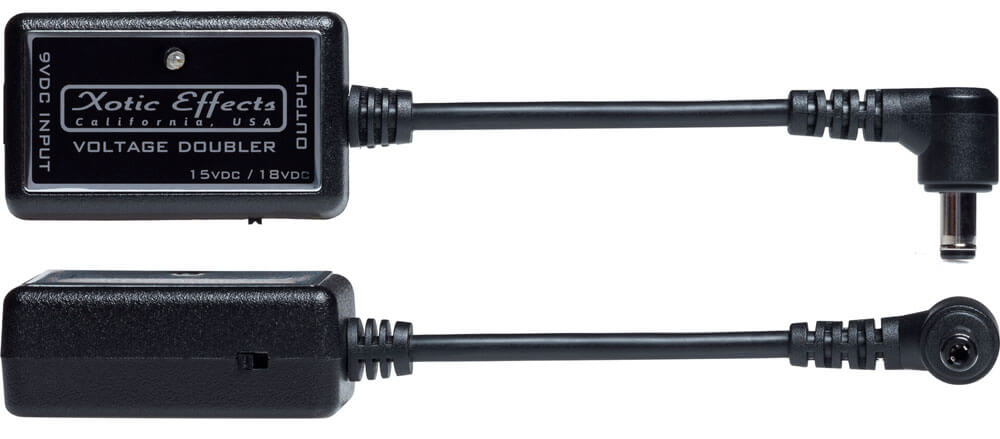

The Xotic “Voltage Doubler” is a step-up converter that takes 9 volts DC and boosts it to an output voltage of 15 or 18 VDC (max current draw 80mA).

Voltage Selector Switch
15 or 18 VOLTS

Simply plug in the power adapter to your existing power source, switch the voltage to either 15 or 18 volts and plug into your pedal. The Xotic Voltage Doubler delivers clean, consistent power with the lowest possible noise.

MUST OWN WITH: EP BOOSTER,
SL DRIVE, SP COMPRESSOR

…Enough Said

Boosting the Bass Pedals?
OH YEAH!

BB Preamp and Bass RC Booster sound great with bass guitar with the extra headroom and clarity.

WHY DO YOU NEED A
VOLTAGE DOUBLER?

The Xotic “Voltage Doubler” is a step-up converter that takes 9 volts DC and boosts it to an output voltage of 15 or 18 VDC (max current draw 80mA).

Higher voltage levels result in more headroom. When you boost the voltage your find your Xotic pedals will get much more dynamic, more headroom, top end and brightness, less compressed sound.

XVD-1 Voltage Doubler Power Adapter

*We Use Quality Components, Safe with Higher Current Draw.
Specifically Designed for the Following Pedals:
XVD-1 Voltage Setting 15VDC 18VDC
AC-Booster YES (Recomended) NO
AC Booster-COMP YES YES
AC Plus YES YES
BB Plus YES YES
BB-Preamp YES (Recomended) NO
BB-Preamp V1.5 YES YES
BB-Preamp-COMP YES (Recomended) NO
BB-Preamp-MB YES (Recomended) NO
EP-Booster YES YES
RC-Booster YES (Recomended) NO
RC-Booster V2 YES YES
SL Drive YES YES
Soul Driven YES YES
SP Compressor YES YES
Super Clean Buffer YES YES
Super Sweet Booster YES YES
Bass BB YES (Recomended) NO
Bass RC YES (Recomended) NO

Warning! This product is designed & recommended for Xotic pedals only! Do NOT try this on any pedals by any other manufacturers without first determining whether they have components with high enough tolerances or the result may be fire and/or serious injury to you and perhaps your pedal. We are not responsible for any damages you or your pedals may suffer.

THESE PEDALS
ARE DOING IT…
YOU SHOULD TOO!

DISCOVER A WHOLE NEW TONE IN YOUR XOTIC PEDAL!
