SP COMPRESSOR
PLUG IN TO AN

SP COMPRESSOR

SHOW YOUR CLEAN
TONE SOME LOVE,
GIVE IT A LITTLE SQUEEZE

the most versatile compressor
from vintage, to subtle, to modern and more

The SP Compressor has superb tone quality featuring a wide variety of compressor tones from vintage, to subtle, to modern and more.
It’s super flexible and features a dry blend knob, up to +15dB of boost and an internal dip switch for attack control.

based on the highly revered
Ross Compressor

Easy to operate and plays well with other pedals (distortion, reverb wah etc).

Run it with the Xotic Voltage Doubler at 15v or 18v for even more headroom!

overview

don’t leave out the grit and growl,add extra dimension to your crunch or lead tone.

A compressor pedal is traditionally used with clean tones but it plays nicely with overdrive and distortion pedals for nice crunchy lead tones.

True bypass for eliminating any signal interference when switched off. Can be used with AC adaptor (optional) or 9V Battery.

accessories

need more headroom?you got it!

The Xotic “Voltage Doubler” is a step-up converter that takes 9 volts DC and boosts it to an output voltage of 15 or 18 VDC (max current draw 80mA).

Why do you need a voltage doubler? Higher voltage levels result in more headroom. When you boost the voltage your find your Xotic pedals will get much more dynamic, more headroom, top end and brightness, less compressed sound.

more
  • Small pedal, huge tone

    With it's compact size, the SP Compressor is a perfect fit for any pedalboard. It may be small, but this compressor packs a huge punch when it comes to tone shaping options.

  • Highly Configurable, Yet So Simple

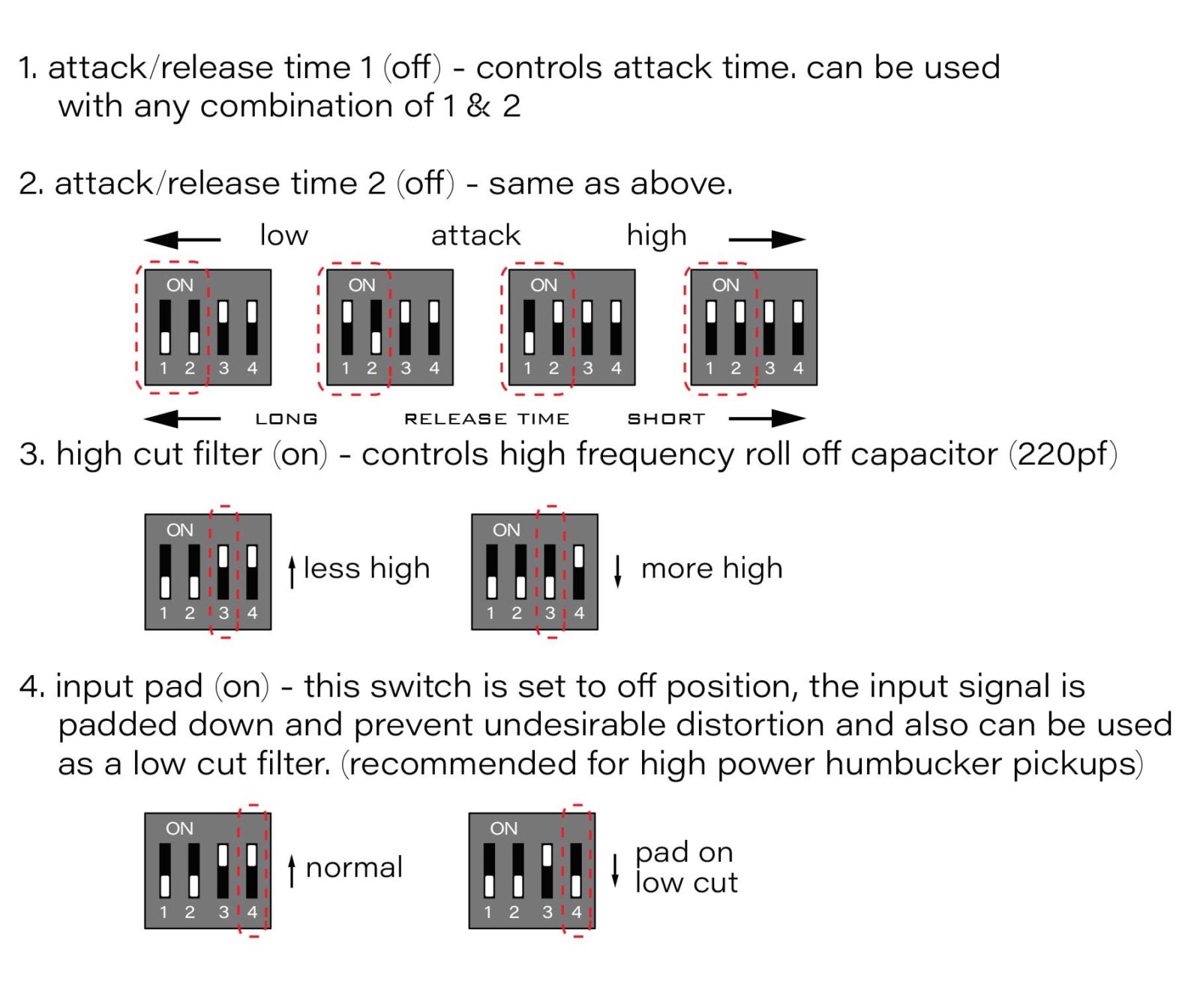

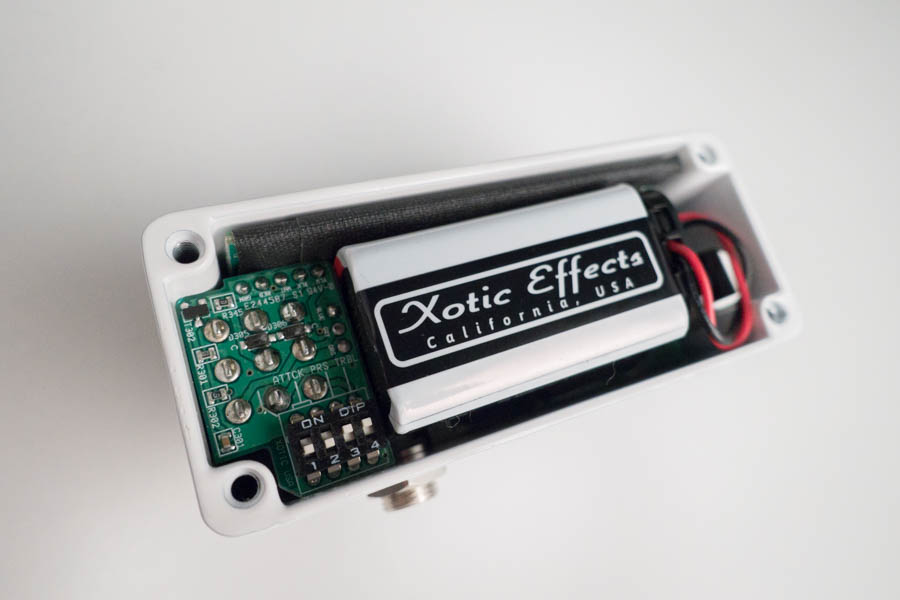

    Open the back cover and you'll find the internal dip switches for even more tone shaping capabilities.

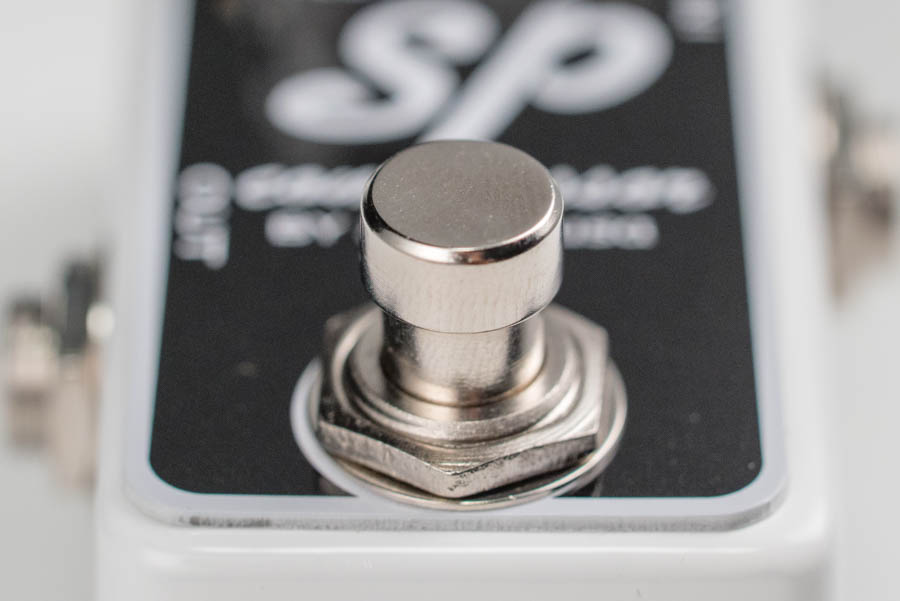

  • True Bypass

    Bypass the pedal with true bypass switching when disengaged.

  • Your always on pedal

    Many players find that they will leave the SP Compressor on at all times.

  • Discrete FET Design, Road Worthy Enclosure

    Compact design with a huge sound. Perfect for musicians on the go.

  • More Power Under the Hood

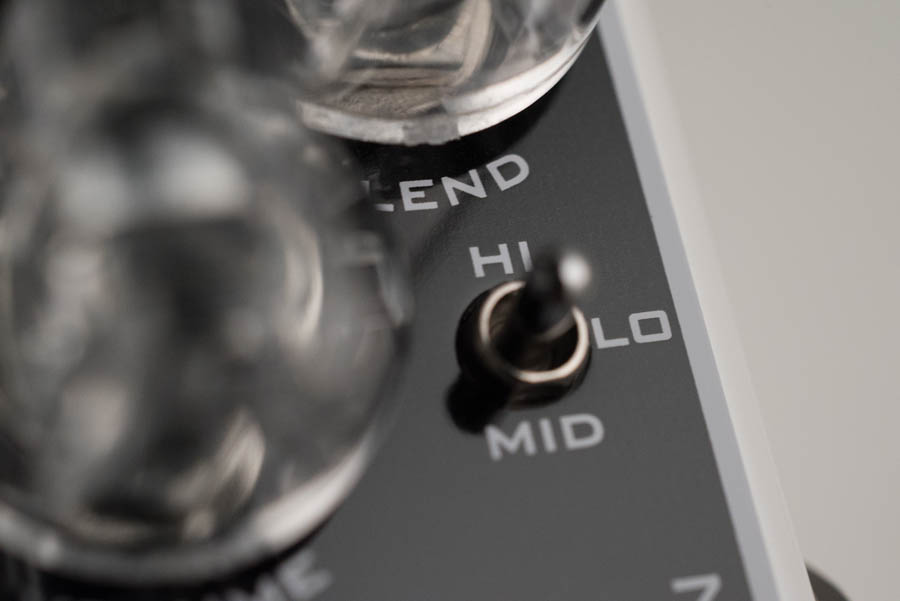

    Toggle the sustain/compression switch to adjust the amount of desired compression.

specs

The SP Compressor can be set forHigh, Medium or Low Compression

Dimensions (W/D/H): 3.5" x 1.5" x 1.5" (89mm X 38mm X 38mm)
Weight: 0.57 lbs. (260g)
Bypass: True Bypass Switching
Power Consumption: 9VDC/5mA
Battery Type: 9VDC (006P) x 1
AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated recommended)
Input Impedance: 1M ohm
Output Impedance: 10k ohm
Nominal Input Signal Level: -20dB (100mVrms)

The SP COMPRESSOR

A Pedal Board Staple

  • "It's ON my board now and I use it EVERY night. Love it!"

    Chris Duarte
  • "I like it very much. I like that its small and compact and it is very versatile"

    Brent Mason
  • "Wow! This compressor is fantastic! You guys did it again!!"

    Oz Noy
