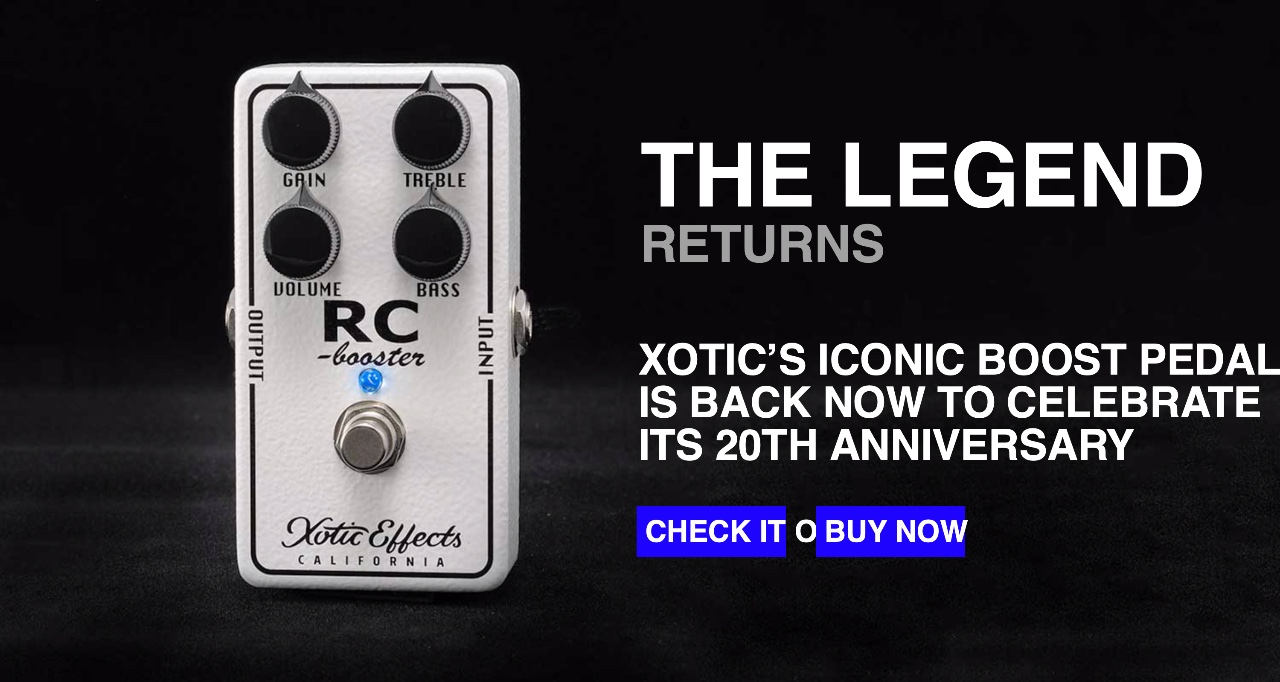

THE LEGEND
RETURNS
After all those years...
transparency is still the name of the game here.
"20th anniversary special page"
Check out messages from all those musical heavy weights.
a versatile clean boost with
active boost, treble, gain and volume controls
- Super Transparent 20dB+ Clean Boost
- Adjustable +-15dB Two Band Active EQ
- Run it at 18v for even more headroom!
it's been called"leave on" pedal for a good reason
Using premium parts, the RC Booster is considered as an "always on pedal" and enhances your guitar's natural harmonics without affecting its tone.
"It's my dessert island pedal" -Scott Henderson
need more headroom?you got it!
The Xotic “Voltage Doubler” is a step-up converter that takes 9 volts DC and boosts it to an output voltage of 15 or 18 VDC (max current draw 80mA).
Why do you need a voltage doubler? Higher voltage levels result in more headroom. When you boost the voltage your find your Xotic pedals will get much more dynamic, more headroom, top end and brightness, less compressed sound.
-
an "Always On Pedal"
Maximize your tone by leaving the pedal on and boosting the natural harmonics of your guitar.
-
Highly Versatile, Yet So Simple
Treble and bass knobs easily and accurately dial in your ideal tone.
-
True Bypass
Advanced circuity to keep your pedal signal pure and free of noise.
The RCBooster Classic can be powered by 9-voltup to 18-volts for desired headroom
| Dimensions (W/D/H): | 4.39" x 2.38" x 1.98" (110mm X 60mm X 50mm) |
|---|---|
| Weight: | 0.6 lbs. (270g) |
| Bypass: | True Bypass Switching |
| Power Consumption: | 9VDC/5mA or 18V/6mA |
| Battery Type: | 9VDC (006P) x 1 |
| AC Adapter (Optional): | 9VDC-18VDC (Regulated Only) |
| Input Impedance: | 1M ohm |
| Output Impedance: | 10k ohm |
The RC Booster
A Pedal Board Staple
"It just enhances all of the frequencies and that's what I love about this pedal."
"It's my desert island pedal. Fattest sounding boost I've ever heard."
