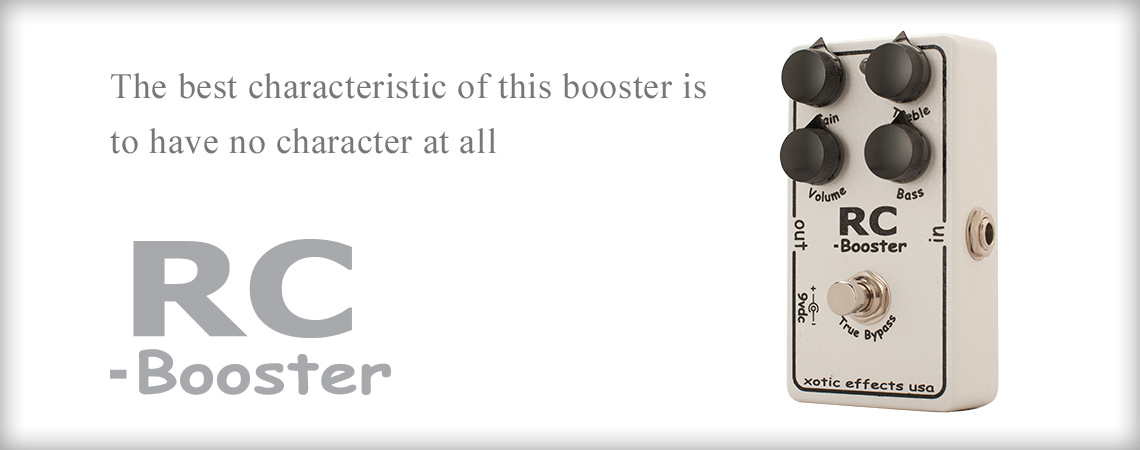

RC BOOSTER

active Treble, Bass ,Gain and Volume controlsfor limitless tone shaping

The RC Booster offers a super transparent 20db+ clean boost and a +- 15db 2 band active EQ without ever compromising the integrity of the original TONE.

The RC BOOSTER

A Pedal Board Staple

overview

It provides a solution to sound degradation, caused by long instrument cables and/or long effect chains between guitar and amp,

by strengthening the original signal.

True bypass for eliminating any signal interference when switched off. Can be used with AC adaptor (optional) or 9V Battery.

more
  • Tone guitarists love

    It's so transparent many players find that they leave it on all the time.

  • True Bypass

    Bypass the pedal with true bypass switching when disengaged.

  • Easy to operate

    Simple treble and bass controls to easily and accurately dial in the perfect sound.

  • A name you can trust

    Proven by guitarists all over the world - Xotic Effects builds pedals that sound great and last!

  • More Headroom

    Can be run at 9v-18v for more headroom.

specs
Dimensions (W/D/H): 4.39" x 2.38" x 1.98" (112mm X 60mm X 50mm)
Weight:0.6 lbs. (280g)
Bypass: True Bypass Switching
Power Consumption: 9VDC/5mA
Battery Type: 9VDC (006P) x 1
AC Adapter (Optional): 9VDC-18VDC, Negative Tips (Regulated recommended)
Input Impedance: 500k ohm (min)
Output Impedance: 10k ohm
